Our Red Badge series represents the pinnacle of XF lens engineering, delivering "prime-level" performance with the versatility of a zoom. These elite lenses are designed for professionals who demand uncompromising edge-to-edge sharpness, constant wide apertures for low-light mastery, and lightning-fast autofocus via advanced linear motors. Built to endure any environment, every Red Badge lens features rugged weather-sealing, ensuring world-class image quality and reliability in even the most demanding shooting conditions.


Great Results Don’t Wait

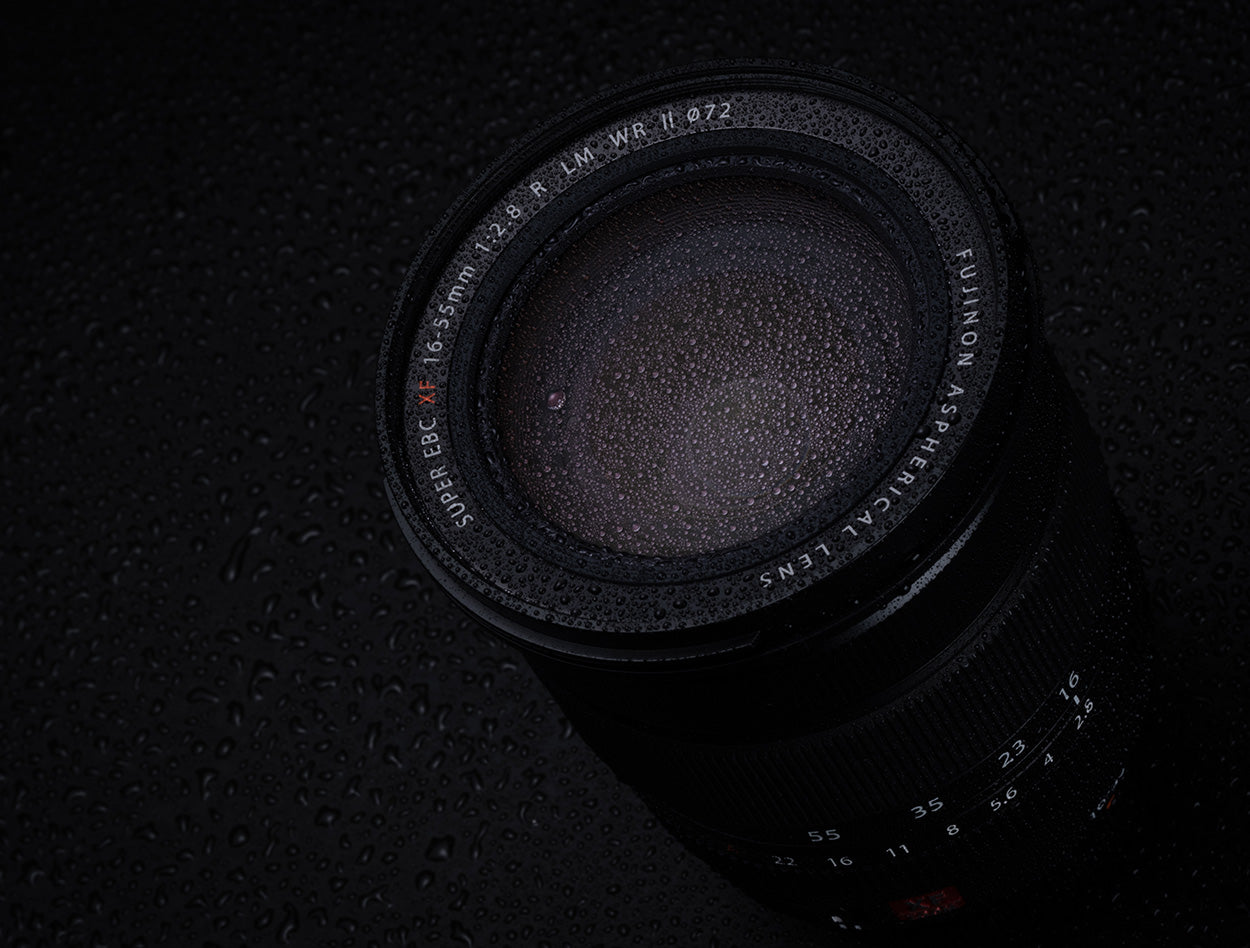

Compact, Lightweight, and Weather-Resistant: The most dramatic moments often come in adverse weather conditions. That’s why XF16-55mmF2.8 R LM WR II lens is designed to be dust and moisture resistant when paired with a weather-resistant X Series body, ideal for those who want to work anywhere in almost any conditions. Keep creating without worrying about water droplets, sand, dust, and low temperatures down to -10°C (14°F).


Minimal Size, Maximum Performance

Cutting-Edge Optical Tech in a Lens Just 95mm (3.74 inches) Long: Advances in lens manufacturing techniques have led to a major drop in XF16-55mmF2.8 R LM WR II lens’s size and weight compared to its predecessor, XF16-55mmF2.8 R LM WR. Improved polishing and machining, plus advanced assembly techniques, mean the second generation lens is now 11mm shorter and approximately 37% lighter than its predecessor. The filter thread has also been decreased to 72mm, so the new lens uses the same filters as the original XF50-140mmF2.8 R LM OIS WR.

Fast, Precise Autofocus

High-Speed, Near-Silent Autofocus with No Drop in Performance: Despite its compact size, XF16-55mmF2.8 R LM WR II lens produces exceptional autofocus performance. This is thanks to a specially designed linear motor that enables fast and near-silent AF. The minimum focusing distance of 0.3m (11.8 inches) and maximum magnification of 0.21x provide impressive scope for close-up images.

Specs

Description

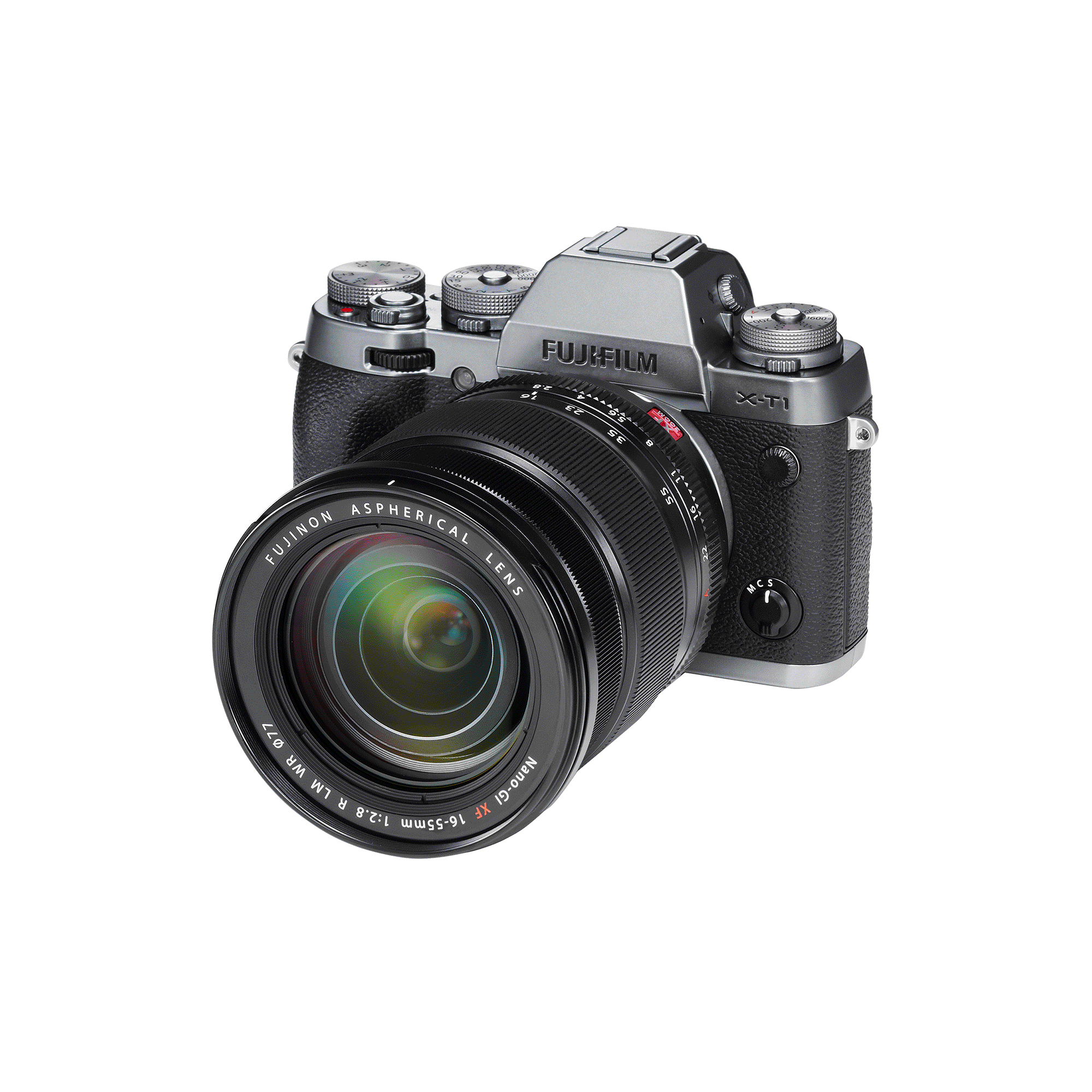

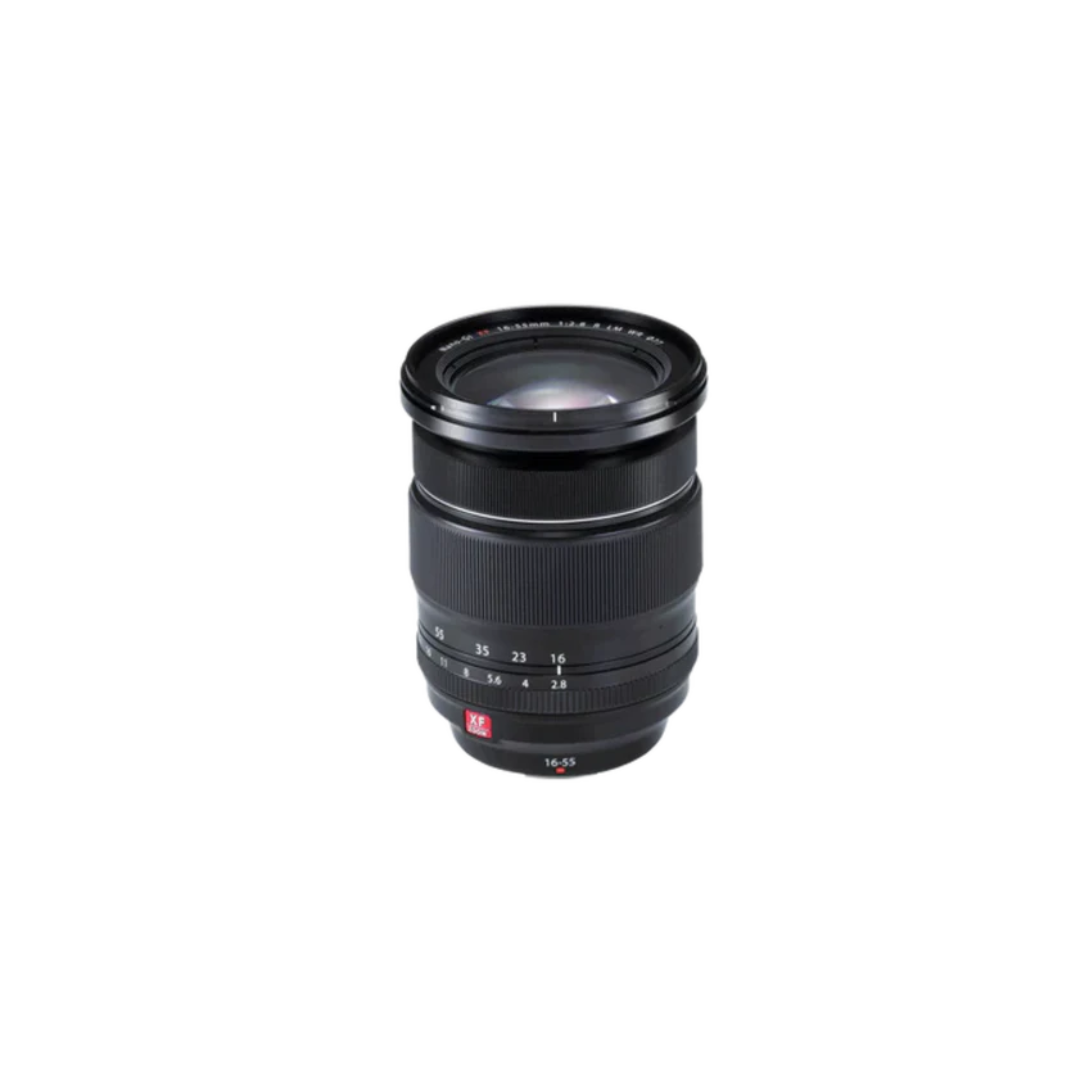

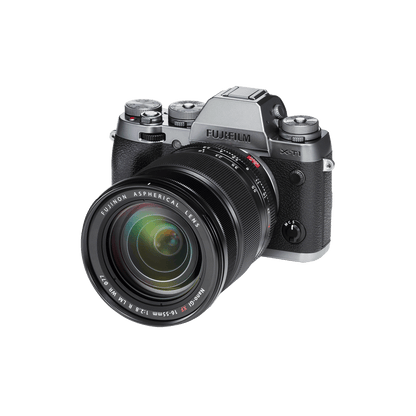

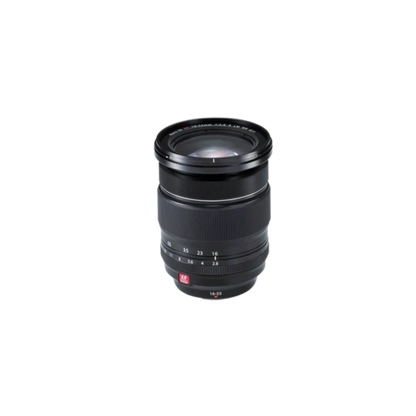

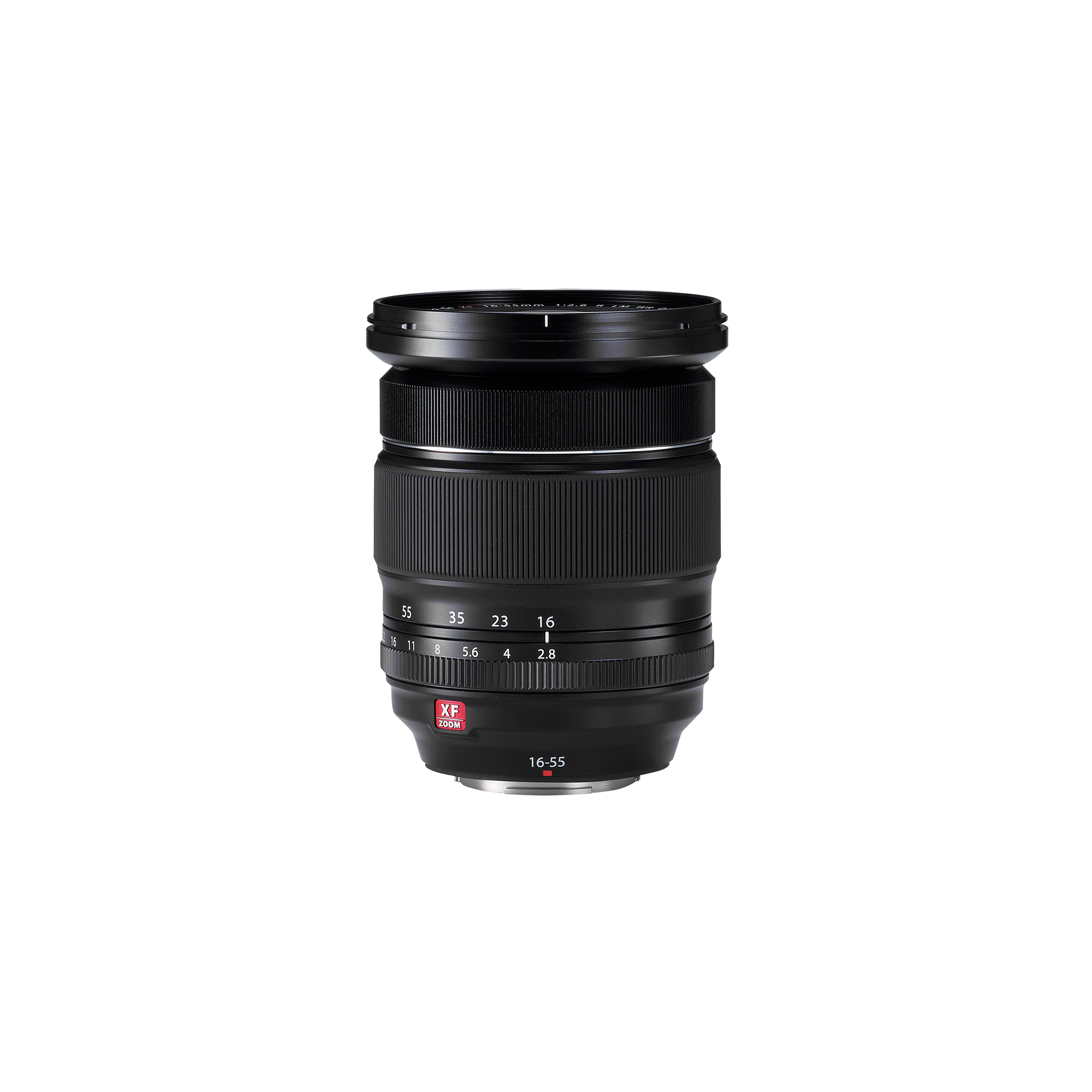

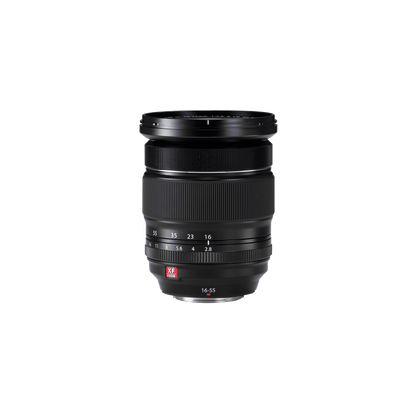

We reintroduce our flagship standard zoom with the FUJINON XF16-55mmF2.8 R LM WR II—now more compact, lightweight, and technologically advanced. Designed to deliver prime-level image quality with enhanced video capabilities, this versatile F2.8 zoom sets a new benchmark for uncompromising performance across every shooting scenario.

Specification
  • Model number - XF16-55mmF2.8 R LM WR II
  • Lens configuration - 16 elements in 11 groups (includes 4 aspherical, 3 ED elements, 1 super ED element)
  • Focal length (35mm format equivalent) - f=16-55mm (24-84mm)
  • Angle of view - 83.2° – 29°
  • Max. aperture - F2.8
  • Minimum aperture - F22
  • Aperture format - Number of blades: 11 (rounded diaphragm opening), Stop size: 1/3EV (19 stops)
  • Minimum focus distance - 0.3m (measured from focal plane)
  • Max. magnification - T: 0.21x
  • External dimensions - Diameter × Length (approx.): W: φ78.3mm × 95mm, T: φ78.3mm × 122mm
  • Weight - Approx. 410g (excluding cap and hood)
  • Filter size - Ø72mm

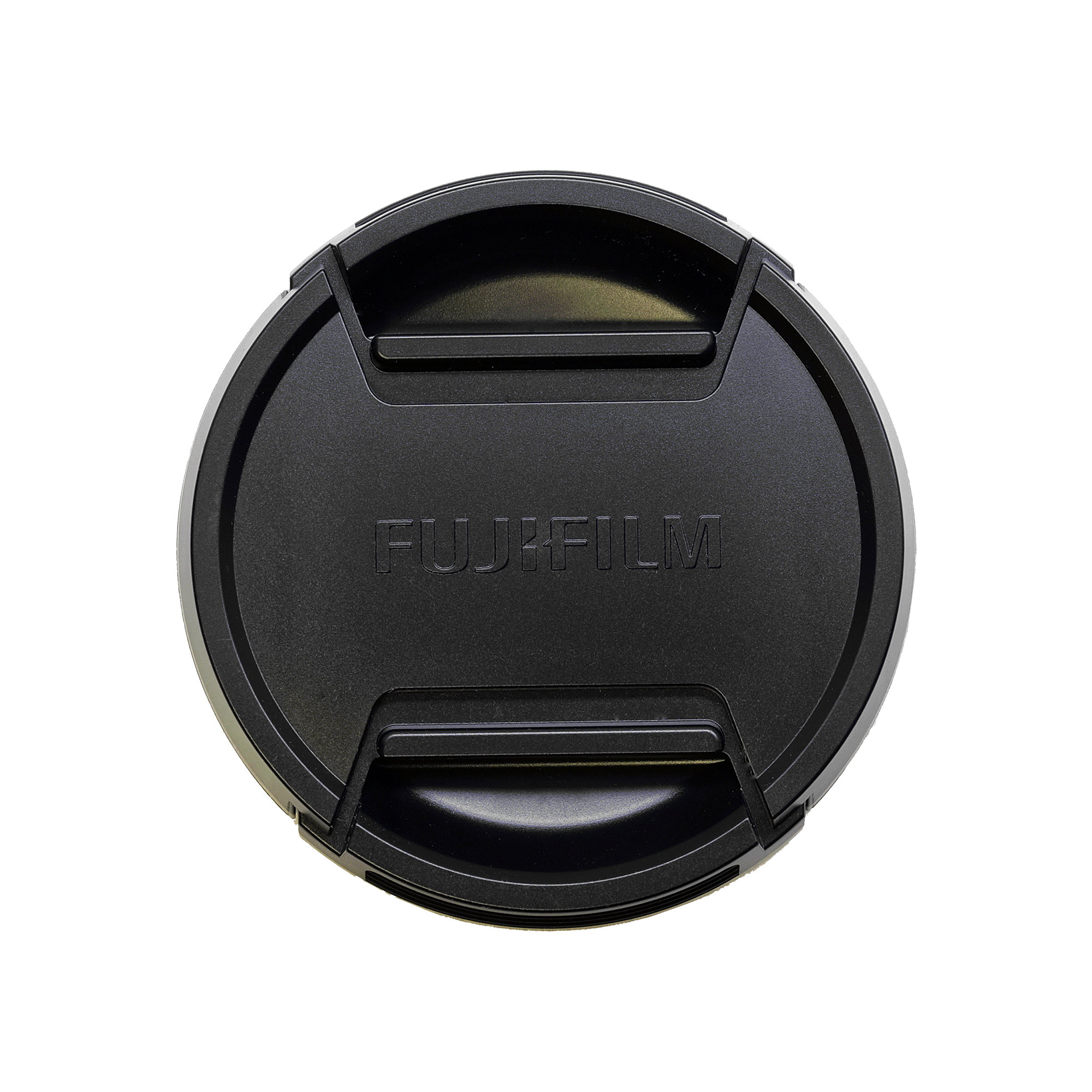

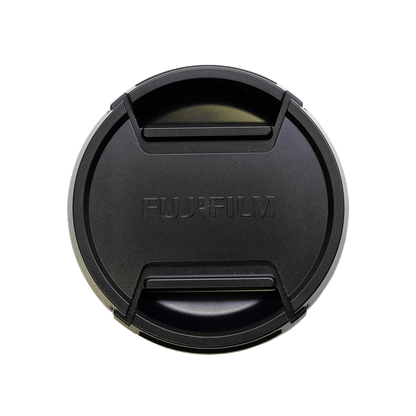

  • In the box - Front lens cap FLCP-72 II, Rear lens cap RLCP-001, Lens hood, Lens wrapping cloth

Included in the Box

  • Quick Start Guide

  • Lens Wrapping Cloth

  • Lens hood

  • Lens
